Pneumax AIRPLUS Pressure Booster

Details

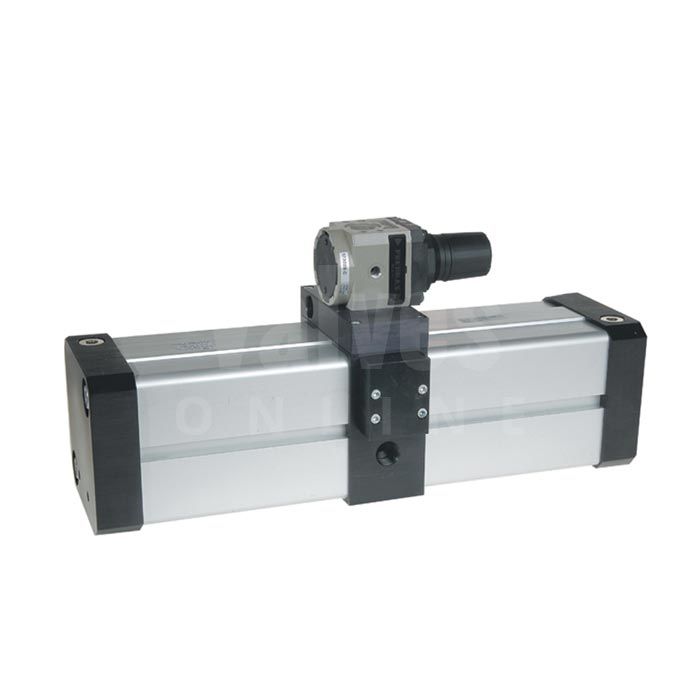

Pneumax AIRPLUS Pressure Booster

During some applications the thrust generated by a pneumatic cylinder is not sufficient for the specific purpose it has been designed for. In order to get over the problem, the working pressure may be increased to a maximum line pressure which normally is 6 - 7 bar, alternatively the problem is solved by an higher bore cylinder that suits the machine.

Three size pressure boosters, with pressure ratio of  2 - 1, have been designed to avoid these problems. This device is utilizing the compressed air of the circuit where it is installed.

Key Features:

• Self Operating Pressure Booster with Regulator
• Pressure ratio 1:2
• Size: 40mm - 100mm
• Connections: 1/8" - 1/2"
• Max working pressure: 2 - 10 bar
• Automatic operation to and from the booster, just connect to the air line

Datasheet:

Pneumax AIRPLUS Pressure Booster Datasheet
